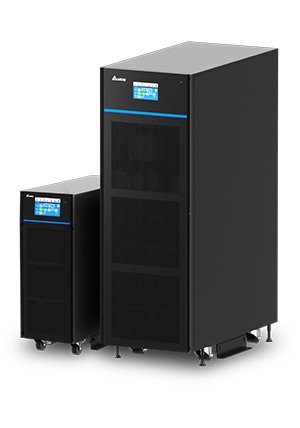

20KVA Delta HPH 20KVA I/O=230/400V Delta UPS (No Battery)

20KVA Delta HPH 20KVA I/O=230/400V Delta UPS (No Battery)

KSh 650,000.00 Ex.VAT

Add to wishlist Add to compareAsk about product
Category:

Description

HPH 20KVA I/O=230/400V Delta UPS (No Battery)

Model

Long backup model

HPH-20KVA

Inbuilt battery model – no batteries inside

Power Rating

20 kVA / 20 Kw

Input

Nominal Voltage: 220/380 Vac, 230/400 Vac, 240/415 Vac (3-phase, 4-wire + G)

Voltage Range: 305~478 Vac (full load)

Current Harmonic Distortion: ≤ 2.5%

Power Factor: > 0.99

Frequency Range: 40~70 Hz

Output

Voltage: 220/380 Vac, 230/400 Vac, 240/415 Vac (3-phase, 4-wire + G)

Voltage Harmonic Distortion

≤ 1.5% (linear load)

≤ 4% (non-linear load)

Voltage Regulation: ± 1% (static)

Frequency: 50/60 Hz

Overload Capability

≤ 105%: continuously

> 105~≤ 110%: 60 minutes

> 110~≤ 125%: 10 minutes

> 125~≤ 150%: 1 minute

> 150%: 1 second

Display

5” color touch screen

Interface

Standard

External battery temperature detection x1, Output dry contact x4, Input dry contact x2, Parallel port x2, USB Port x1, RS232 Port x1, REPO Port x1, Mini Slot x2

Conformance

Safety: CE, RCM (IEC62040-1, IEC62040-2 Class C2)

Efficiency

AC-AC: > 96% (Peak efficiency)

ECO Mode: 99%

Battery

Nominal Voltage: ± 240 Vdc (default, ± 180 Vdc~± 276 Vdc configurable)

Charge Voltage: ± 272 Vdc (adjustable from 204 V to 312 V)

Maximum Inbuilt Charger Current: 15 A

Discharge Time: 20 minutes

Environment

Operating Temperature: 0~40℃

Relative Humidity: 0~95% (non-condensing)

Audible Noise (at one meter): < 50 dB

IP Protection: IP20 (Standard)

IP42 (Optional for long backup model)

Others

Parallel Redundancy and Expansion: Up to 4 units

Battery Start: Yes

Physical

Dimensions (W x D x H): 240 x 630 x 650 mm

Weight

44 kg

Physical (HPH-B/B-N)

Dimensions (W x D x H): 410 x 780 x 1200 mm



HPH 20KVA Documents

User Manual
