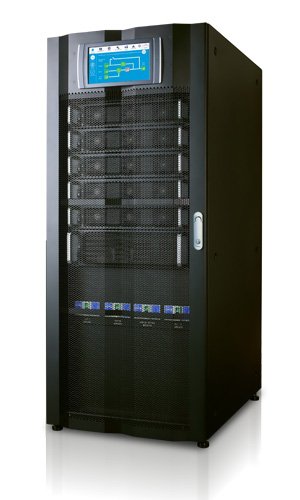

Name: 80KVA Three Phase DPH Delta UPS
SKU: 4354
Availability: InStock

Description

DPH 80KVA Delta UPS

Model

DPH-120K

Power Rating

120 kW

Power Module Quantity: Up to 6 units

Input

Nominal Voltage

220/380 Vac, 230/400 Vac, 240/415 Vac (3-phase, 4-wire + G)

Voltage Range

305~478 Vac (full load), 228~478 Vac (70% load)

Current Harmonic Distortion

≤ 2%*

Power Factor

> 0.99

Frequency Range

50/60 Hz

Output

Voltage: 220/380 Vac, 230/400 Vac, 240/415 Vac (3-phase, 4-wire + G)

Voltage Harmonic Distortion

≤ 1% (linear load)

≤ 4% (non-linear load)

Voltage Regulation

±1% (static)

Frequency

50/60 Hz

Overload Capability

≤ 125%: 10 minutes

≤ 150%: 1 minute

> 150%: 1 second

Display

10” color touch screen

Interface

Standard

External battery temperature detection x 4, External switch/breaker status dry contact x 4, Output dry contact x 6, Input dry contact x 4, Parallel port x 2, USB Port (Type A x 2, Type B x 1), RS232 Port x 1, Modbus Port x 1, BMS (RJ45) x 1, Ethernet x 1, SNMP Slot x 1, REPO Port x 1

Conformance

Safety

Efficiency

AC-AC

> 96% (Peak efficiency)

ECO Mode

99%

Battery

Nominal Voltage

±240 Vdc (default, ±180~±276 Vdc configurable)

Charge Voltage

±272 Vdc (adjustable from 204 to 312 V)
