Description

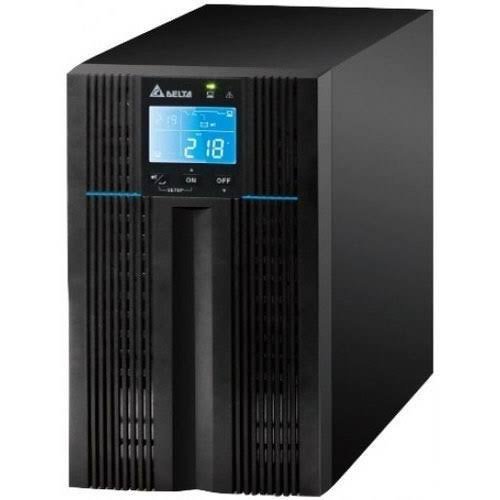

New N 3kVA Delta Ups N 3KVA I/O=230/230 50HZ WB(EMEA) Online
Output Specifications
Output Capacity (KVA ): 3 Kva
Output Capacity (KW ): 2.7 KW
Output Power Factor: 0.9 Power Factor
Output Phase: 1 Phase
Output Voltage: 220 Volt
Other Output Voltage: 230 Or 240 Volt
Efficiency at Full Load: >90 %
Output Voltage Distortion: <2 %
Output Frequency (sync to mains): 50/60Hz +/- 3 Hz
Output Frequency (not synced): 60Hz +/- 0.1% for 60Hz nominal, 50Hz +/- 0.1% for 50Hz nominal
Load Crest Factor: 3:1
Output Voltage THD: <3 %
Output Waveform type: Sine Wave
Input Specifications
Input Voltage: 220 Volt
Other Input Voltage: 230 Or 240 Volt
Input Phase: 1 Phase
Input frequency: 50/60Hz +/- 3 Hz
Input Voltage Range (Output Derated): 100 – 280 Volt
Input voltage range for main operations: 160 – 280 Volt
Input frequency Range: 40 – 70 Hz
Input Power Factor: >0.99 None
Batteries & Runtime
Approved Battery Capacity (AH): 7 – 9 Amp.
Battery DC Bus: 72 VDC
Maximum Charger Capacity: 1.5 Amp.
Battery Position Option: External
Battery Type Compatibility: SMF Battery
Communication & Management
Control panel: LCD Display
SNMP Management: Optional
Power Management Software: In-Built
Interface Port(s): RS-232, USB
Audible Alarm
Audible and visible alarms prioritized by severity
Audible noise at 1 meter from surface of unit
<50 Decibal
Physical
Maximum Height: 325 Mm
Maximum Width: 190 Mm
Maximum Depth: 390 Mm
Net Weight: 24.9 Kg
Environmental
Operating Temperature: 0 – 40 °C
Operating Relative Humidity: 5 – 95 % Rh
Other Specifications
Technology: Double Conversion Online
