Name: Mecer 6KVA Smart Tower Online UPS- ME-6000-WPTU
SKU: 4372
Availability: InStock

Description

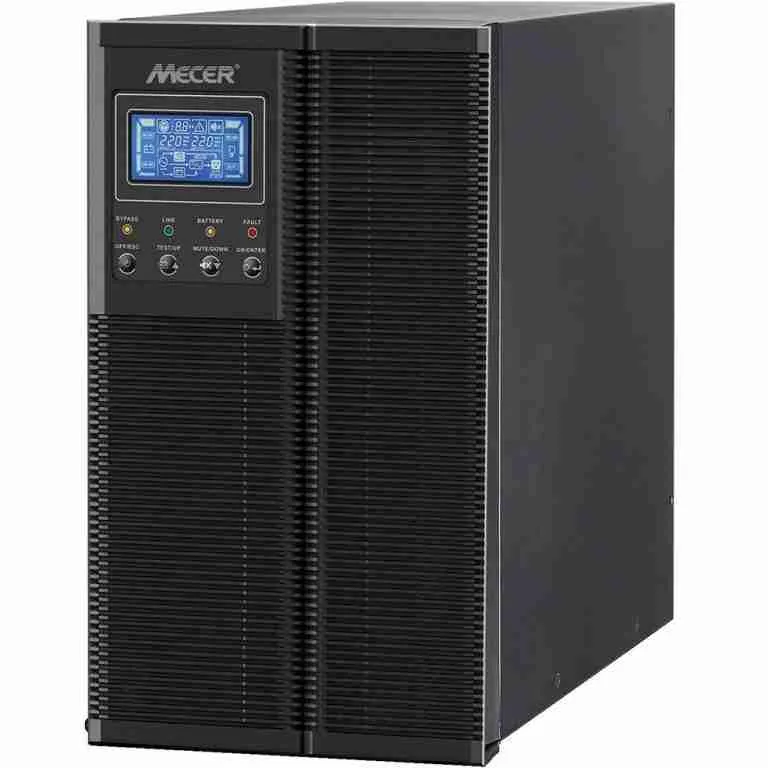

ME-6000-WPTU- Mecer 6KVA Online Smart Tower UPS

Mecer 6KVA ME-6000-WPRU Winner Pro 6KR | 6000VA/4800W Rackmount UPS

The Mecer 6000VA Smart T-UPS features True double-conversion online UPS, DSP technology guarantees high reliability, Output power factor of 0.8, Wide input voltage range (110-300 VAC), Input power factor of correction 0.99, 50Hz/60Hz frequency converter mode and ECO mode operation for energy saving. It also has an Emergency power off function (EPO), a 3-stage extendable charging design for optimized battery performance, a Maintenance bypass available, and an external battery bank is available as optional.

True double-conversion
Microprocessor control optimizes reliability
Input power factor correction 0.99
Output power factor 0.8
Wide input voltage (110 V–300 V)
Converter mode available
ECO mode for energy saving
Generator compatible

Specifications table:


Specifications and features
Product Code	ME-6000-WPRU
CAPACITY	6000 VA / 4800 W
PHASE	Single phase with ground
INPUT
Input Voltage Range	110-300 VAC (Based on the load at 50%); 176-300 VAC (Based on the load at 100%)
Nominal Voltage	208/220/230/240 VAC
Frequency Range	46~54 Hz or 56~64 Hz
Power Factor	>= 0.99 @ Nominal Voltage (100% load)
OUTPUT
Voltage Regulation	± 1%
Output Voltage	208/220/230/240 VAC
Frequency Range (Batt. Mode)	50 Hz or 60 Hz ± 0.1 Hz
Transfer Time: AC Mode to Battery Mode	Zero
Transfer Time: Inverter to Bypass	Zero
Transfer Time: Waveform (Batt. Mode)	Pure Sine Wave
Current Crest Ratio	3::1
Harmonic Distortion	— 3% THD (Linear Load); — 5% THD (Non-linear Load)
Frequency Range (Synchronized Range)	46~54 Hz or 56~64 Hz
EFFICIENCY
Battery Mode	0.9
AC Mode	0.92
BATTERY
Long-run Model: Battery Type	Depending on the capacity of external batteries
Long-run Model: Charging Current (max.)	1A/2A/4A/6A (Adjustable, 6A is only available for 16pcs batteries)
Long-run Model: Charging Voltage	273 VDC ± 1% (Based on 20pcs batteries)
Long-run Model: Numbers	16~20 (Adjustable)
Standard Model: Battery Type	12 V / 9 Ah
Standard Model: Charging Current (max.)	1A/2A
Standard Model: Charging Voltage	218.4 VDC ± 1%, 273 VDC ± 1%
Standard Model: Numbers	16, 20
Standard Model: Typical Recharge Time	9 hours recovery to 90% capacity
INDICATORS
LCD	Load level, Battery level, AC mode, Battery mode, Bypass mode, and Fault indicators
ALARM
Battery Mode	Sounding every 4 seconds
Low Battery	Sounding every second
Overload	Sounding twice every second
Fault	Continuously sounding
ENVIRONMENT
Operating Humidity	0~95% RH @ 0- 50°C (non-condensing)
Noise Level	Less than 55dB @ 1 Meter
PHYSICAL
Standard Model : Dimension, D x W x H (mm)	530 x 438 x 88 [2U]
Standard Model: Net Weight (kgs)	15
Long-run Model : Dimension, D x W x H (mm)	530 x 438 x 88 [2U]
Long-run Model: Net Weight (kgs)	15
MANAGEMENT
Optional SNMP	Power management from SNMP manager and web browser
Smart RS-232/USB	Supports Windows 2000/2003/XP/Vista/2008, Windows 7/8/10, Linux, and MAC
