Description

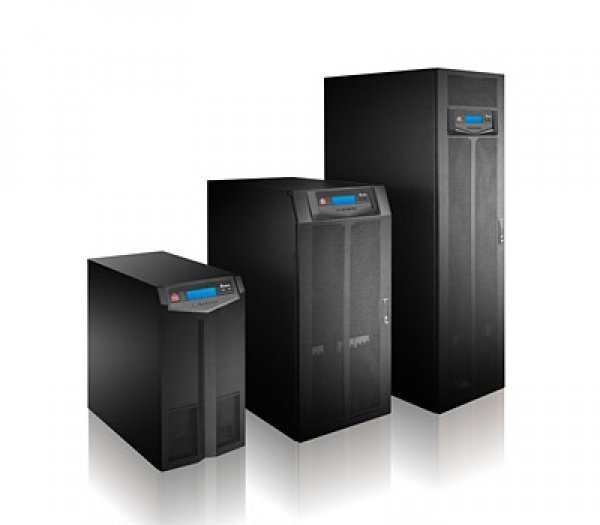

HPH integrated battery 30kVA 380/400/415V, 50/60Hz, inbuilt battery 2×40
Technical Specifications
| Model | HPH-30KVA |
| Power Rating | 30 kVA/Kw |
| Input Nominal Voltage Voltage range Frequency Power Factor Current Harmonic Distortion |
380/220Vac, 400/230Vac, 415/240Vac (3 phase, 4-wire + G) [20-40K]: 300~477 Vac (full load), 228~300 Vac (70%~100% load) [60-120K]: 332~477 Vac (full load), 228~332 Vac (63%~100% load) 40~70Hz > 0.99 (full load) < 3% |
| Output Voltage Voltage Regulation Voltage Harmonic Distortion Overload Capability Output Power Factor Frequency |
380/220Vac, 400/230Vac, 415/240Vac (3 phase, 4-wire + G) ± 1 % [20-40K]: < 1.5% (linear load) [60-120K]: < 2% (linear load) ≤105 %: continuous 106% ~ ≤125%: 10 minutes 126% ~ ≤150%: 1 minute >150%: 1 second 1 50/60Hz +/- 0.05Hz |
