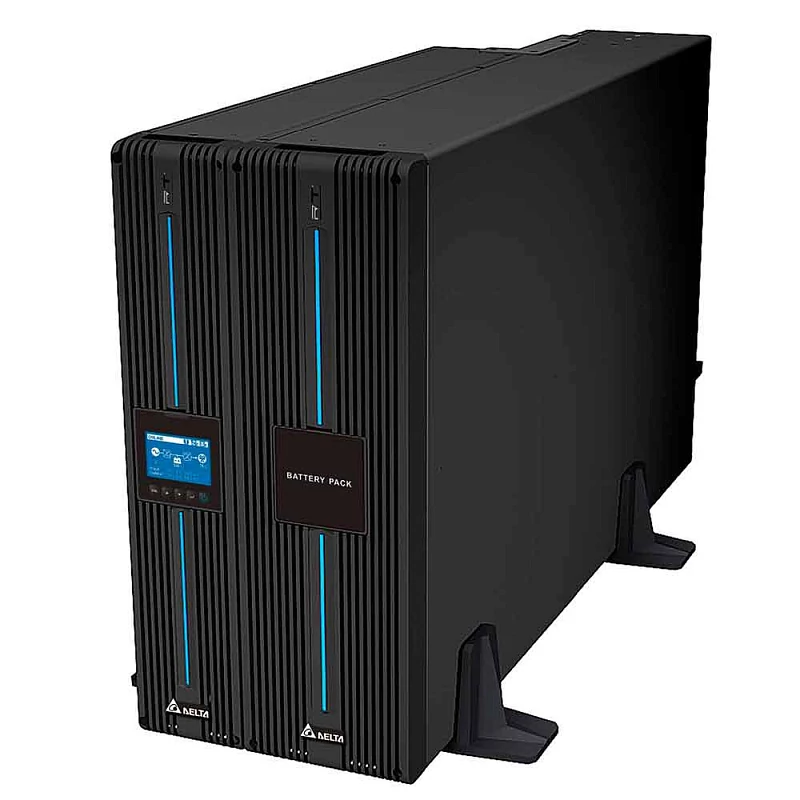

Name: Delta UPS RT-Series 8kVA S w/ 20x9Ah batt. &amp; PDB (UPS802R2RT0B035)
SKU: 4315
Price: 253000.00 KES
Availability: InStock

Description

UPS Delta RT-Series 8kVA Technical Specifications

Input parameters
Rated power, VA/W	8000 / 8000
Voltage range	100~280V (single phase, 2 wires plus ground)
Voltage range	100~175V with linear derating at 50~100% load
Frequency	40~70Hz
Power factor	> 0.99 (at full load)
Current harmonic distortion factor	< 3%
Input connections	Input terminal block x 1
output parameters
Power factor	1
Voltage	200, 208, 220, 230, 240 VAC current (single phase)
Frequency	50/60Hz±0.05Hz
Voltage THD	< 2% (with linear load)
Overload capacity	≤ 105%: continuous operation 106 ~ 125%: 5 min. 126 ~ 150%: 1 min. > 150%: 500ms
conclusions	IEC C13 x 6 (non-managed) IEC C19 x 4 (non-managed) Terminal block x 1 (non-managed) IEC C19 x 1 (managed)
efficiency
Normal mode	up to 95.5%
Economy mode	up to 99%
Rechargeable batteries
Battery capacity	20×9 Ah
Battery voltage	240 V DC current
Charging current	1.5 A (default) 8 A (maximum)
Common parameters
Noise level	50 dB
Display	Graphic LCD display with multilingual interface
Communication interfaces	1 MINI slot, 1 USB port, 1 RS232 port, 1 RS485 port, 1 REPO/ROO port, 4 dry contacts
Dimensions (W × D × H), mm	440×750×218
Weight, kg	85.5
Ambient operating temperature	0~55°C
Relative humidity of the environment	5 ~ 95% (non-condensing)

UPS runtime table Delta RT-Series 8kVA S w/ 20x9Ah batt. &PDB
