Description

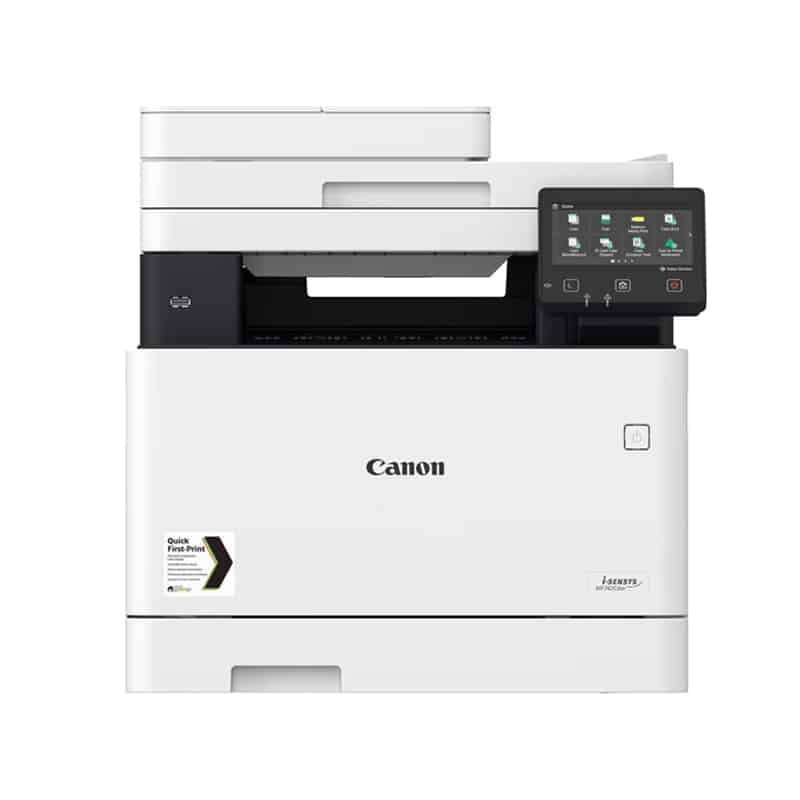

Canon i-SENSYS MF752Cdw Colour Laser All-In-One Print Copy and Scan

Product Features

• Intuitive user experience: Streamline workflows with drag-and-drop tabs to customize the display and create one-touch shortcut buttons with Application Library apps.
• Reliable security: Advanced system verification protects the device from hacking and virus threats as soon as you start up, while Secure PIN restricts access to sensitive documents.
• Ultimate productivity: Work faster by printing and scanning at speeds of up to 33ppm, as well as utilizing a wide range of media handling with the ability to scan small documents such as cheques and receipts.
• Built-in cloud connectivity: Centralize print management with cloud-based Universal Print by Microsoft and access documents directly from cloud storage services: Google Drive, DropBox and OneDrive.
• Print Resolution: Up to 1200 x 1200 dpi

Technical Details

General Specifications

• Machine Type
  Colour Laser All-In-One
• Available Functions
  Print, Copy and Scan

Print Specifications

• Print Speed
  33ppm
• Printing Method
  Colour laser beam printing
• Print Resolution
  Up to 1200 x 1200 dpi
• Warm-up Time
  Approx. 14 seconds or less from power on
• First-Print-Out Time
  Colour approx.: 7.1 seconds or less
  Mono approx.: 7.1 seconds or less
• Printer Languages
  UFRII, PCL 5c¹, PCL6
• Fonts
  45 PCL fonts
• Print Margins
  5 top, bottom, left and right
  10 top, bottom, left and right (Envelope)
• Toner Saver Mode
  Yes
• Advanced Printing Features
  Encrypted Secure Print
  Secure Print
  Print from USB memory key (JPEG/TIFF/PDF)
  Print from Cloud (Dropbox, GoogleDrive, OneDrive)² (PDF/JPEG)
  Microsoft Universal Print support
  iOS: AirPrint, Canon PRINT Business app
  Android; Mopria certified, Canon Print Service Plug-in, Canon PRINT Business app

Copy Specifications

• Copy Speed
  Single-sided (A4): Up to 33 ppm
  Double-sided (A4): Up to 29 ipm
• First-Copy-Out Time
  ADF (A4): Colour Approx. 8.8 seconds or less
  Mono Approx. 7.6 seconds or less
  Platen (A4):
  Colour Approx. 9.4 seconds or less
  Mono Approx. 8.3 seconds or less
• Copy Resolution
  Up to 600 x 600 dpi
• Copy Modes
  Text/Photo/Map (Default), Text/Photo/Map (quality), Printed Image, Text
• Double Sided Copying
  2-sided to 2-sided (Automatic)
• Multiple Copies
  Up to 999 copies
• Reduction / Enlargement
  25-400% in 1% increments
• Other Features
  Frame Erase, Collate, 2 on 1, 4 on 1, ID card copy, Reserved copy

Scan Specifications

• Standard Type
  Colour
• Scan Resolution
  Optical: Up to 600 x 600 dpi
  Enhanced: Up to 9600 x 9600 dpi
• Scan Speed
  Single-sided mono: 50ipm (300x300dpi)
  Single-sided colour: 40ipm (300x300dpi)
  Double-sided mono: 100ipm (300x300dpi)
  Double-sided colour: 80ipm (300x300dpi)
  Single-sided mono: 40ipm (300x600dpi)
  Single-sided colour: 20ipm (300x600dpi)
  Double-sided mono: 80ipm (300x600dpi)
  Double-sided colour: 40ipm (300x600dpi)
• Colour Scanning Depth
  24 bit/24 bit (input/output)
• Greyscales
  256 levels
• Compatibility
  TWAIN, WIA, ICA
• Maximum Scan Width
  216mm
• Scan to E-mail
  TIFF/JPEG/PDF/Compact PDF/Searchable PDF
• Scan to PC
  TIFF/JPEG/PDF/Compact PDF/Searchable PDF
• Scan to USB Memory Key
  TIFF/JPEG/PDF/Compact PDF/Searchable PDF
• Scan to FTP
  TIFF/JPEG/PDF/Compact PDF/Searchable PDF
• Scan to Cloud
  TIFF/JPEG/PDF/PNG³

Media Handling

• Scanner Type
  Platen, 2-sided ADF (single pass)
• Paper Input (Standard)
  250-sheet cassette
  50-sheet multi-purpose tray
  50-sheet ADF
• Paper Input (Option)
  550-sheet cassette
• Maximum Paper Input Capacity
  850-sheet cassette
• Paper Output
  150-sheet
• Media Types
  Plain paper, Recycled paper, Heavy Paper, Thin paper, Colour paper, Coated paper, Pre-punched, Label, Postcard, Envelope
• Media Sizes
  Cassette (Standard):
  A4, A5, A5 (Landscape), A6, B5, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K, Post card, Envelop (COM10, DL, C5, Monarch), Custom sizes: Min. 98 x 148 mm Max. 216.0 x 356.0 mm.Multi-purpose tray:
  A4, A5, A5 (Landscape), A6, B5, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K, Postcard, Index card, Envelope (COM10, DL, C5, Monarch), Custom sizes: Min 76.0 x 127 mm Max. 216.0 x 356.0 mm.

  Cassette (Optional):
  A4, A5, A5 (Landscape), A6, B5, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K, Postcard, Custom sizes: Min. 100 x 148 mm Max. 216.0 x 356.0 mm.

  ADF:
  A4, A5, A6, B5, Legal, Letter, Statement, Custom sizes: Min. 48 x 85.0 mm Max 216.0 x 355.6 mm

• Media Weights
  Cassette (standard and optional): 60 to 163 g/m² (Up to 200 g/m² with Coated paper)
  Multi-purpose tray: 60 to 176 g/m² (Up to 200 g/m² with Coated paper)
  ADF: 50 to 105 g/m²
• Double Sided Printing
  Automatic
  Cassette:
  A4, A5, B5, Legal, Letter, Executive, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K
  Custom size – Min. 148 x 148 mm Max. 216 x 356 mm
  60 to 200 g/m²

Interface & Software

• Interface Type
  USB 2.0 Hi-Speed, 10BASE-T/100BASE-TX/1000Base-T, Wireless 802.11b/g/n, Wireless Direct Connection
• Operating System Compatibility
  Windows® 11 / Windows® 10 / Windows® 8.1 / Server® 2022 / Server® 2019 / Server® 2016 / Server® 2012R2 / Server® 2012
  Mac OS X version 10.12 & up
  Linux⁴
• Network Protocol
  Print:
  TCP/IP (LPD/Port9100/IPP/IPPS/WSD)
  Scan:
  Push Scan: File: FTP (TCP/IP), SMB3.0 (TCP/IP)
  E-mail/I-Fax: SMTP (send), POP3 (receive)
  Pull Scan: TCP/IPManagement:
  SNMPv1, SNMPv3 (IPv4,IPv6)

  Security:
  TLS1.3, IPSec, IP address filtering, IEEE802.1X, SNMPv3, SSL (HTTPS, IPPS)
  Security (wireless):
  Infrastructure Mode:
  WEP(64/128 bit), WPA-PSK(TKIP/AES), WPA2-PSK(TKIP/AES), WPA-EAP(AES), WPA2-EAP(AES)
  Access Point Mode:
  WPA2-PSK(AES)

• Software and Printer Management
  MF Scan Utility,
  Remote User Interface (RUI),
  Department ID Management,
  Toner Status Tool,
  iW Enterprise Management Console: Server-based software for centralised management of a fleet of devices
  eMaintenance: embedded RDS allows remote eMaintenance services such as meter capture, automatic consumables management and remote diagnostics.
  Application Library

General Features

• Recommended Monthly Print Volume
  750 – 4,000 pages per month
• Duty Cycle
  Max. 50,000 pages per month5
• Processor Speed
  1200MHz x 2
• Memory
  1GB
• Control Panel
  12.7 cm LCD Colour Touch Screen
• Dimensions with Trays (W x D x H)
  425 mm x 461 mm x 430 mm
• Installation Space (W x D x H)
  625 mm x 1,117 mm x 991 mm
• Weight
  Approx. 23.30 Kg
• Operating Environment
  Temperature: 10 to 30ºC (50 to 86ºF)
  Humidity: 20 to 80% RH (no condensation)
• Power Source
  220-240V(±10%) 50/60Hz (±2Hz)
• Power Consumption
  Maximum: Approx. 1,380 W
  Active printing: Approx. 700W
  Standby: Approx. 24.0 W
  Sleep mode: Approx. 1.0 W
  Typical Electricity Consumption (TEC): 0.30 kWh/week⁵ (230V)
  For detailed information relating to Lot26 regulation, please go to: http://www.canon-europe.com/For_Work/Lot26/index.aspx
• Noise Levels
  Sound Pressure⁶:
  Active: Simplex 51dB / Duplex 51dB (BW), 50dB (CL)
  Standby: 29 dBSound Power⁷:
  Active: 65dB or less
  Standby: 41dB or less

Consumables

• Cartridges
  Cartridge 069 Black (2,100 pages*)**
  Cartridge 069H Black (7,600 pages*)**
  Cartridge 069 Cyan (1,900 pages*)**
  Cartridge 069H Cyan (5,500 pages*)**
  Cartridge 069 Magenta (1,900 pages*)**
  Cartridge 069H Magenta (5,500 pages*)**
  Cartridge 069 Yellow (1,900 pages*)**
  Cartridge 069H Yellow (5,500 pages*)***Based on ISO/IEC 19798
  **Printer ships with Black: 2,100 pages, C/M/Y: 1,100 pages starter cartridges
